Elta Turboflow Max TF Axial Fan
Description
Description

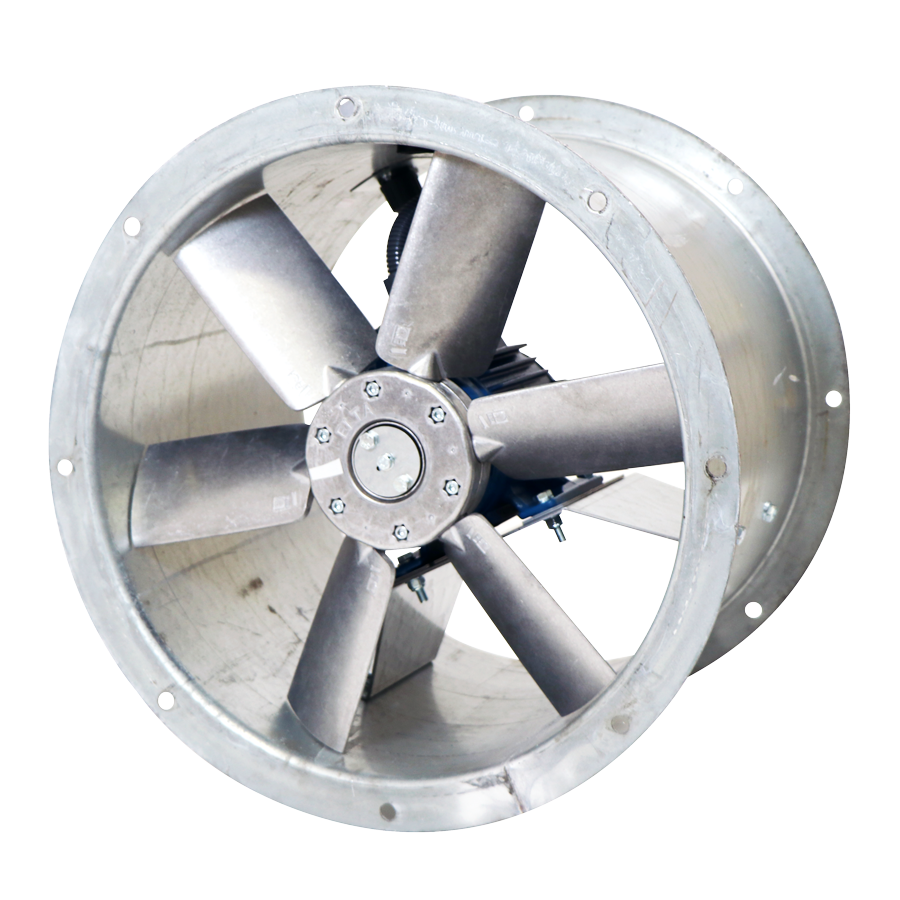

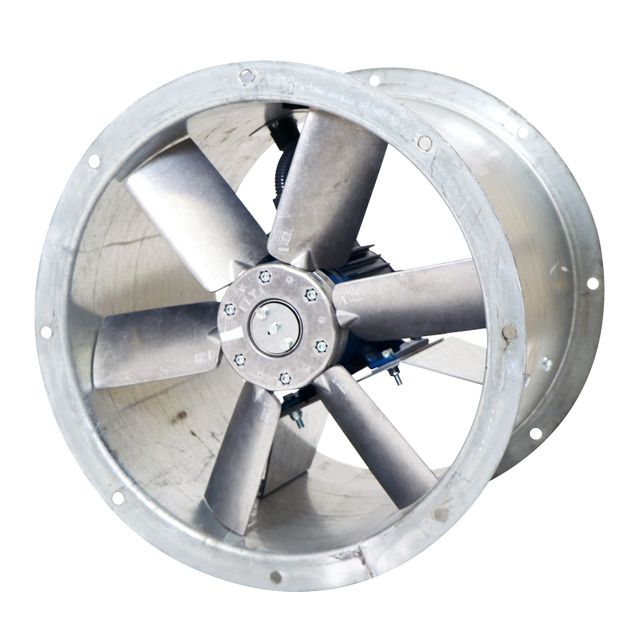

Turboflow Max TF Long Cased Kitchen Axial Flow Fan
The Turboflow Max TF is a single stage axial fan range developed for higher pressure ducted extract, particularly where kitchen systems demand strong performance with a straightforward install. It combines a long cased all metal construction with adjustable pitch aerofoil impellers, making it a solid option for commercial plus industrial ventilation duties that need real pressure capability.
Select models are available for next day delivery.
Why the Turboflow Max TF is specified for higher pressure systems
- Higher pressure capability: developed to tackle higher pressure requirements using a single stage axial approach

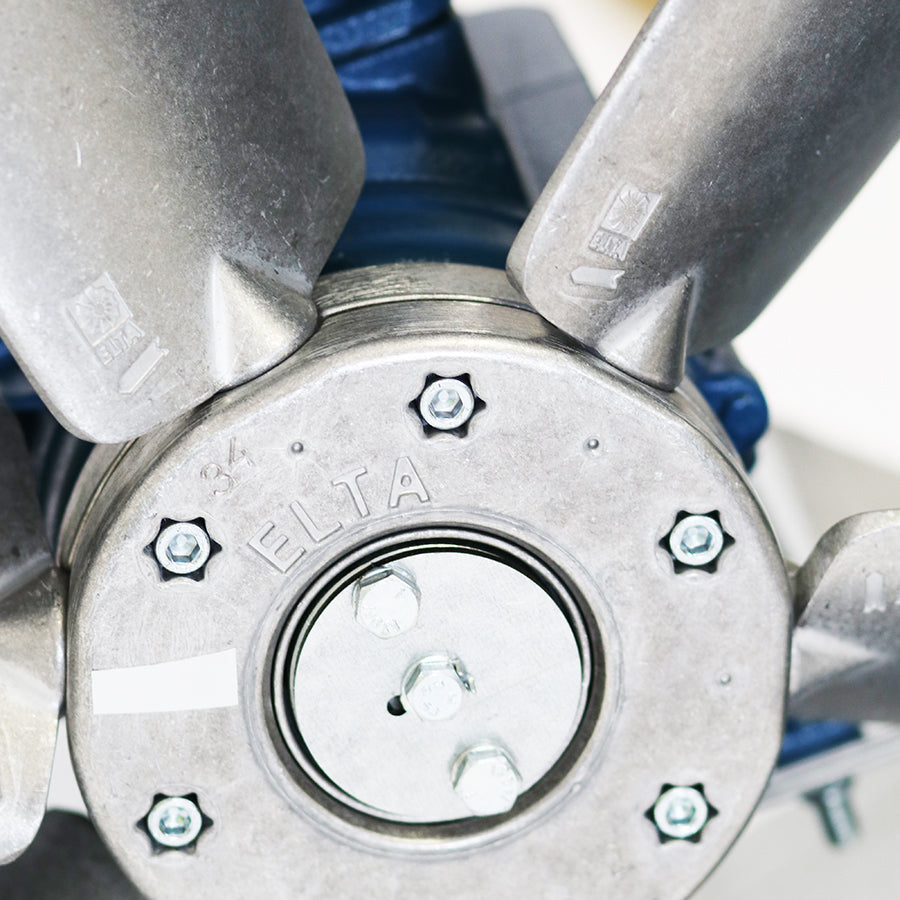

- Efficient impeller design: adjustable pitch aerofoil impellers with pressure die cast aluminium blades plus an increased blade chord and twist to improve efficiency
- Arduous duty confidence: increased blade root strength to reduce stress levels in tougher applications
- External mounting suitability: corrosion resistant construction designed for external mounting as standard

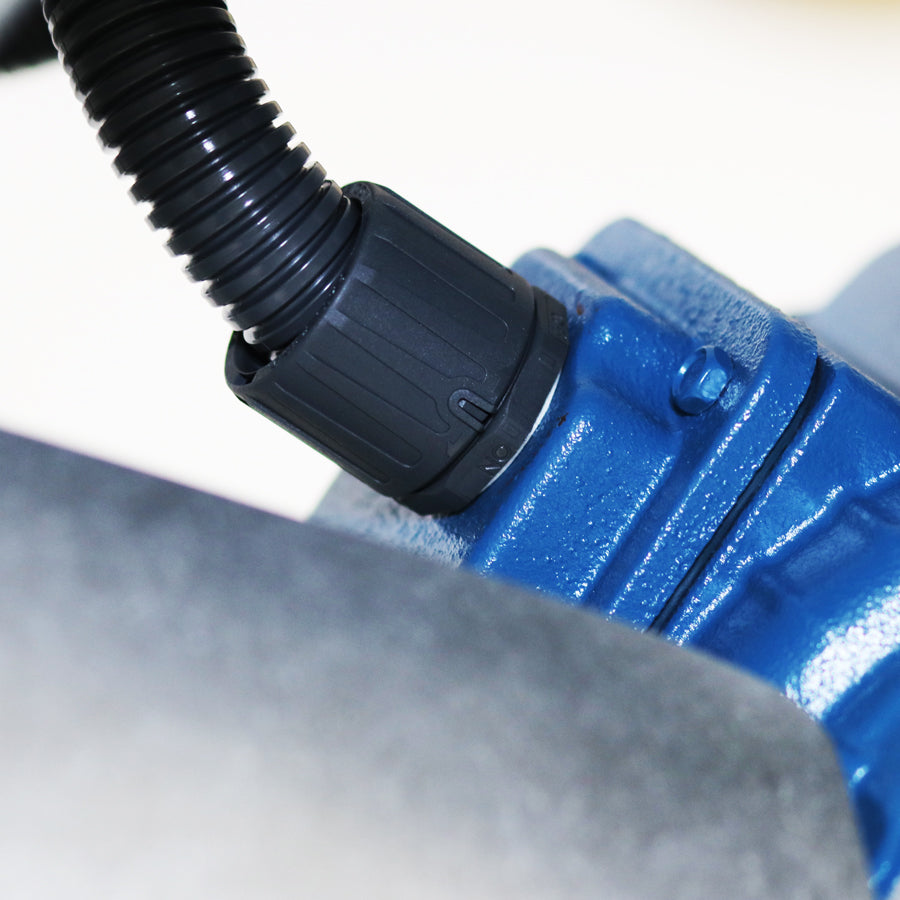

- Simple electrical connection: weatherproofed cable to an IP55 terminal box mounted on the outside of the casing for easier wiring access
- Controllability: designed for variable frequency drive speed control plus integration into building management systems
- Warranty: 24 month warranty
Range overview
- Sizes: 4 standard sizes from 450mm to 630mm
- Air volume flow: up to 4.00 m³/s depending on model
- Static pressure: up to 916 Pa depending on model
- Operating temperature: suitable for operating temperatures up to +50°C
- Motor type: AC models
Construction highlights
- Casing: heavy gauge mild steel sheet with a long lasting all metal build, hot dip galvanised after fabrication to BS EN ISO 1461 or supplied in pre galvanised sheet steel depending on unit
- Impeller balance: dynamically balanced assemblies for stable running characteristics
- Motor: foot mounted totally enclosed motors to IP55 with sealed for life bearings
Installation and servicing notes
- Provide clear access for future inspection plus cleaning
- The fan can be mounted at any angle provided it is adequately supported
- At start up, confirm impeller rotation plus airflow direction before handover
- Plan for at least an annual inspection to remove dust deposits plus check fastenings
Selection tip: match your duty point using the performance curves then confirm the correct diameter plus blade angle option for your pressure requirement. If you are replacing an existing unit, use the product code to identify size, poles, supply plus blade angle.
|
Product Data, Performance & Dimension Sheet |
|
 |
Installation, Maintenance & User Guide Installation requirements, wiring diagram references, safe start up checks plus the recommended inspection routine for keeping the Turboflow Max TF operating reliably over time. Click here to download the full installation, maintenance and user guide. Click here to download the full installation, maintenance and user guide. |
Looking to specify or purchase? Explore our full range of heat recovery ventilation units or contact Buy Ventilation for expert guidance on selecting the right system for your project.
