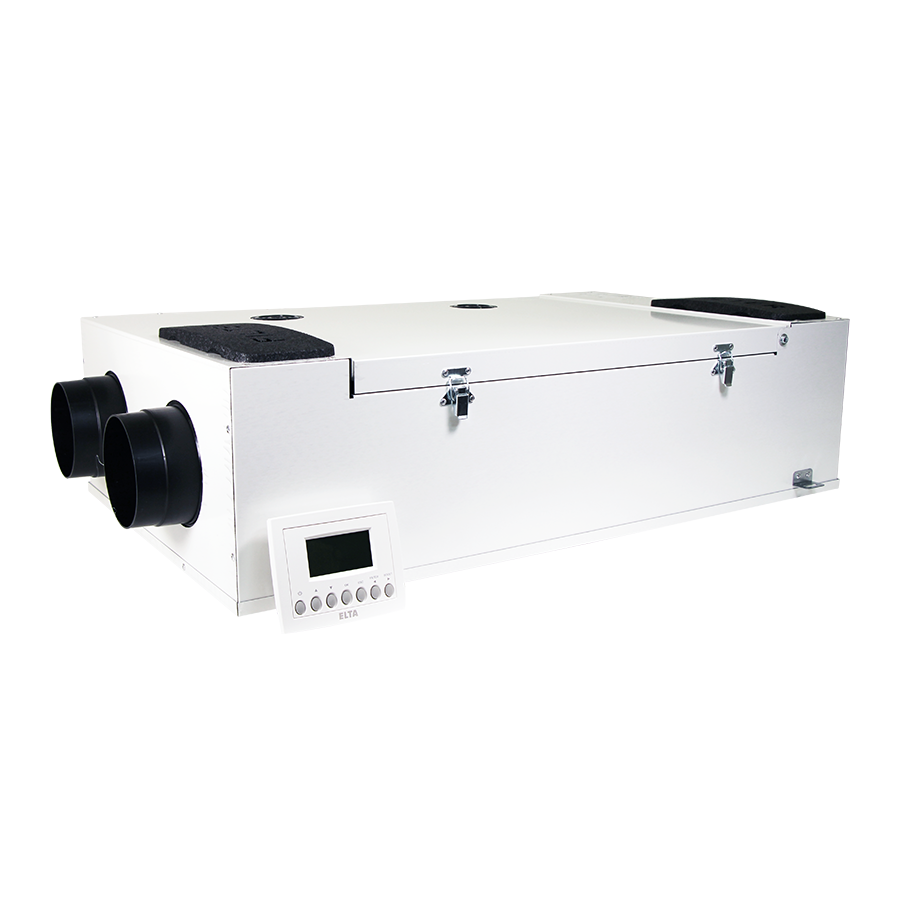

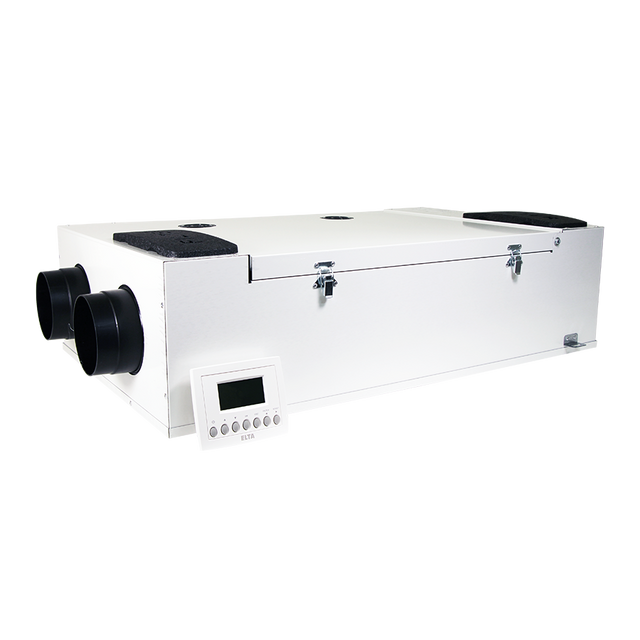

HAVA 180H - Horizontally Mounted Heat Recovery Ventilation Unit

HAVA 180H — Horizontally Mounted Mechanical Ventilation with Heat Recovery Unit (MVHR)

The HAVA 180H is a Mechanical Ventilation with Heat Recovery (MVHR) unit that simultaneously extracts air from ‘wet’ rooms while supplying new, filtered air to the ‘habitable’ areas of a dwelling. Designed for horizontal installation, it provides reliable, energy-efficient ventilation with integrated heat recovery to improve indoor air quality and help prevent condensation and mould.

Product Overview

Compact yet powerful, the HAVA 180H delivers efficient airflow performance with very low running costs and thermal recovery to reduce heating demand. It is PCDB and SAP Q listed to ensure recognised performance under Building Regulations. The unit includes a multi-function LCD display controller for easy operation and monitoring, along with automatic summer bypass and anti-frost protection for year-round efficiency.

Key Features and Benefits

• Compact horizontal design: Easy to install in limited ceiling voids or loft spaces.

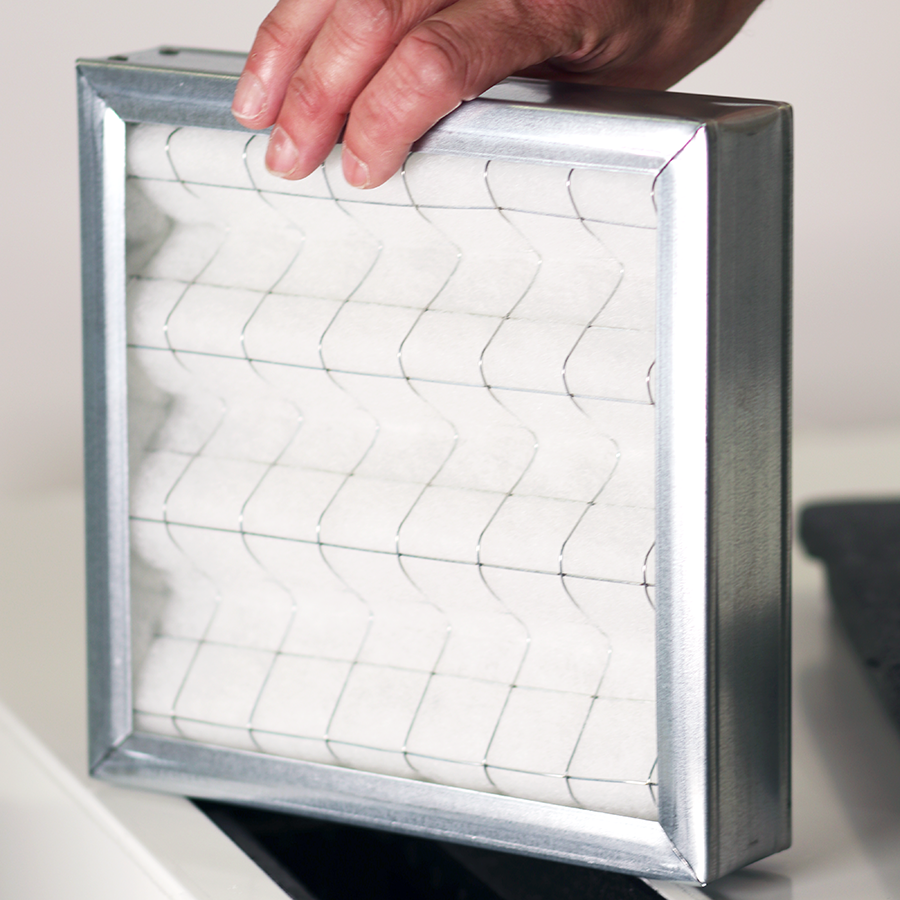

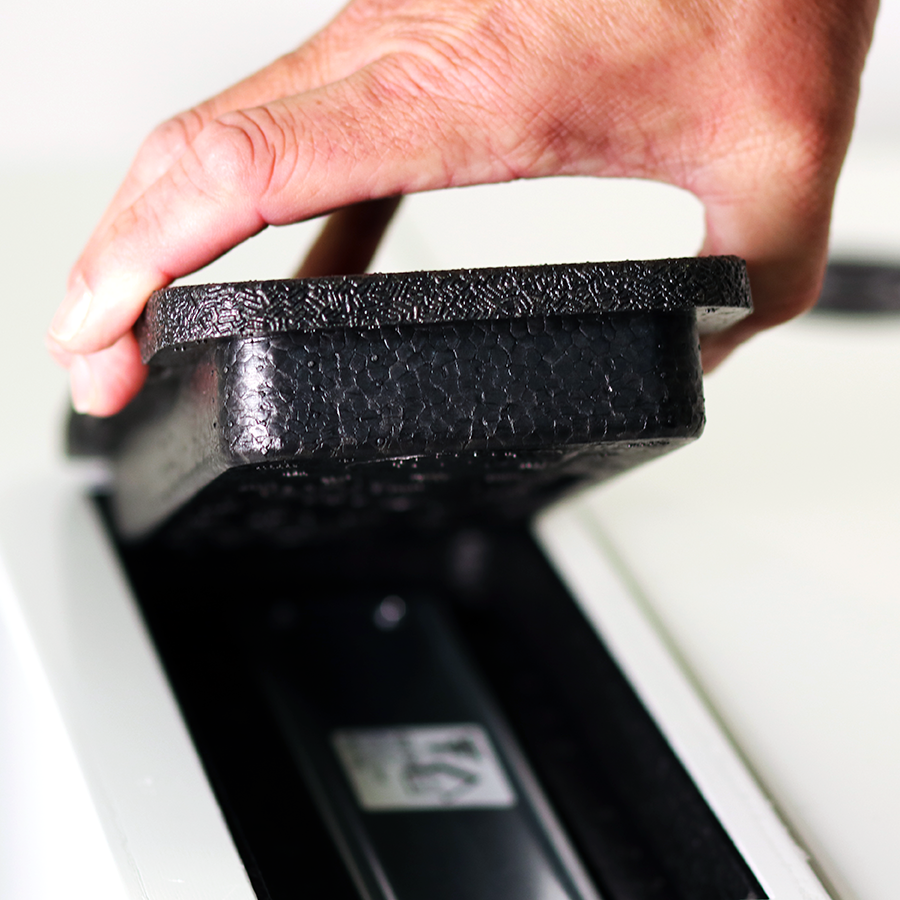

• Filter access: Quick-change ISO Coarse 60% (G4) filters; optional ISO ePM1 60% (F7) upgrade available.
• Automatic frost and summer bypass: Built-in anti-frost protection and two condensate drainage points maintain performance in all seasons.
• Durable EPP and metal casework: Provides excellent thermal insulation and mechanical strength.
• Pre-wired electrics: Simplified wiring with supplied wall-mounted LCD controller for operation, alarms, and mode selection.

SAP/PCDB Performance Data

• Kitchen + 1 additional wet room: Supply +12% | Extract 14% → 15.0 L/s, SFP 0.94 W/(L/s), Heat exchange efficiency 87%.
• Kitchen + 2 additional wet rooms: Supply +5% | Extract 19% → 21.0 L/s, SFP 0.93 W/(L/s), Efficiency 86%.
• Kitchen + 3 additional wet rooms: Supply +12% | Extract 14% → 27.0 L/s, SFP 1.08 W/(L/s), Efficiency 85%.
• Kitchen + 4 additional wet rooms: Supply +12% | Extract 14% → 33.0 L/s, SFP 1.30 W/(L/s), Efficiency 83%.
• Kitchen + 5 additional wet rooms: Supply +12% | Extract 14% → 39.0 L/s, SFP 1.53 W/(L/s), Efficiency 81%.

Technical Specifications

• Airflow: Up to 59 L/s (@ 100 Pa; 49 L/s typical).
• Power (max): 105 W.
• Sound level: 21 dB(A) @ 3 m breakout (comparative only; normal speed 40%).
• Ambient temperature (max): 40 °C.

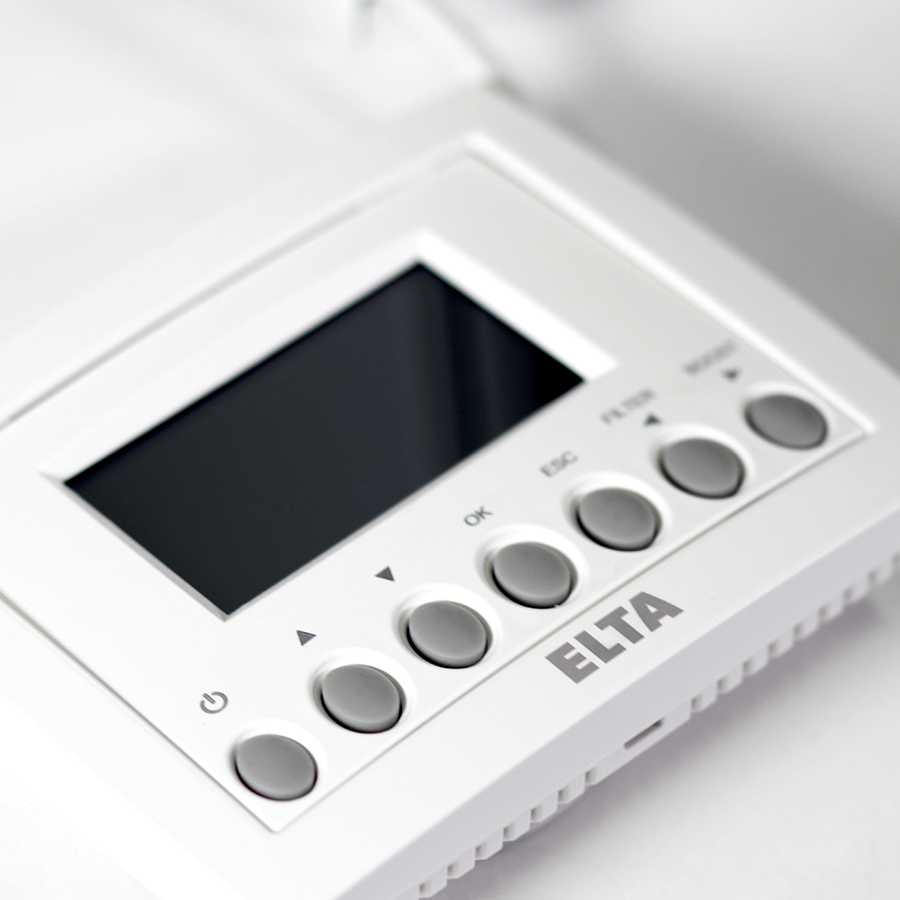

• Controls: LCD wall-mounted multi-function controller with touch buttons and status display.
• Construction: EPP body with metal casework.
• Condensate drainage: Two Ø16 mm outlets for summer bypass and winter condensation drainage.
• Weight: 20 kg.

Quality and Compliance

• PCDB and SAP Q listed for Building Regulations compliance.
• Manufactured to BS EN ISO 9001 standards and tested to ISO 5801 (airside performance) and BS ISO 13347-1 (sound performance).

Warranty

Each HAVA 180H unit is supplied with a 5-year manufacturer’s warranty for assured reliability and peace of mind.

	Product Data, Performance & Dimension Sheet – Learn more about the airflow performance, power consumption, efficiency ratings and dimensional details of the HAVA 180H MVHR unit. This document provides full technical data for accurate specification and installation planning. Click here to download the full data, performance and dimension sheet.
	Installation, Maintenance & User Guide – Learn how to correctly install, commission and maintain your HAVA 180H MVHR unit. This guide includes wiring information, filter replacement steps, operational guidance and essential maintenance procedures. Click here to download the full installation, maintenance and user guide.

Looking to specify or purchase? Explore our full range of heat recovery ventilation units or contact Buy Ventilation for expert guidance on selecting the right solution for your project.
