Elta Hideaway SH Low Profile Box Fan
Description
Description

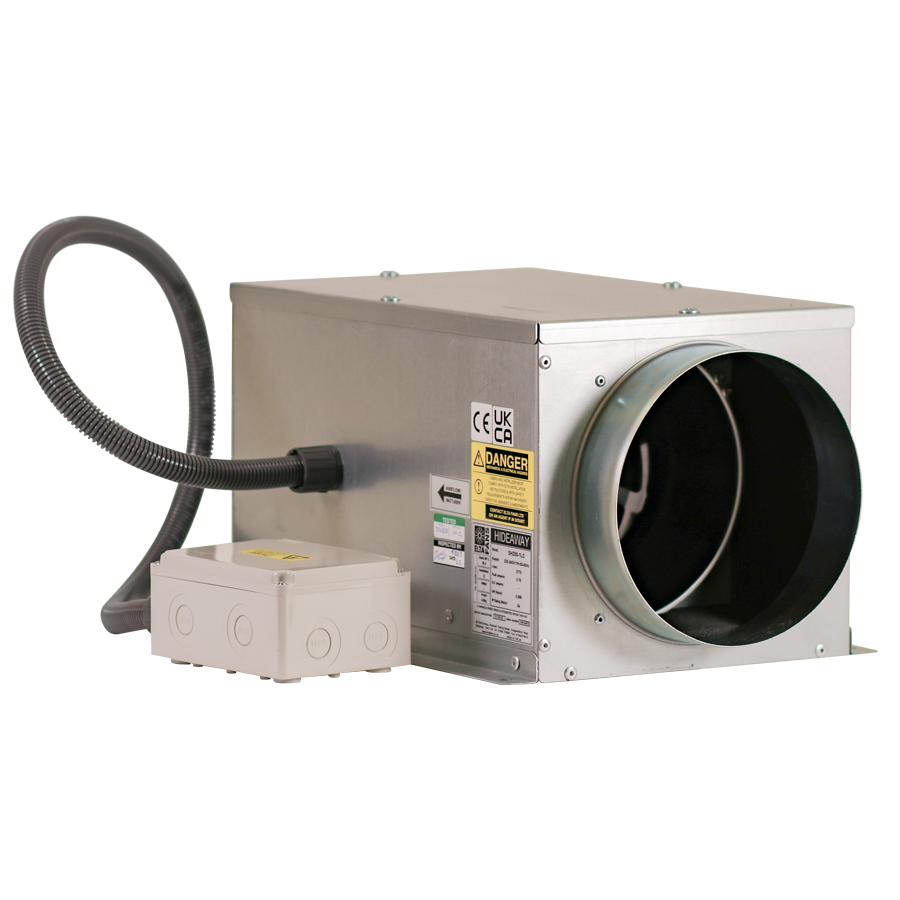

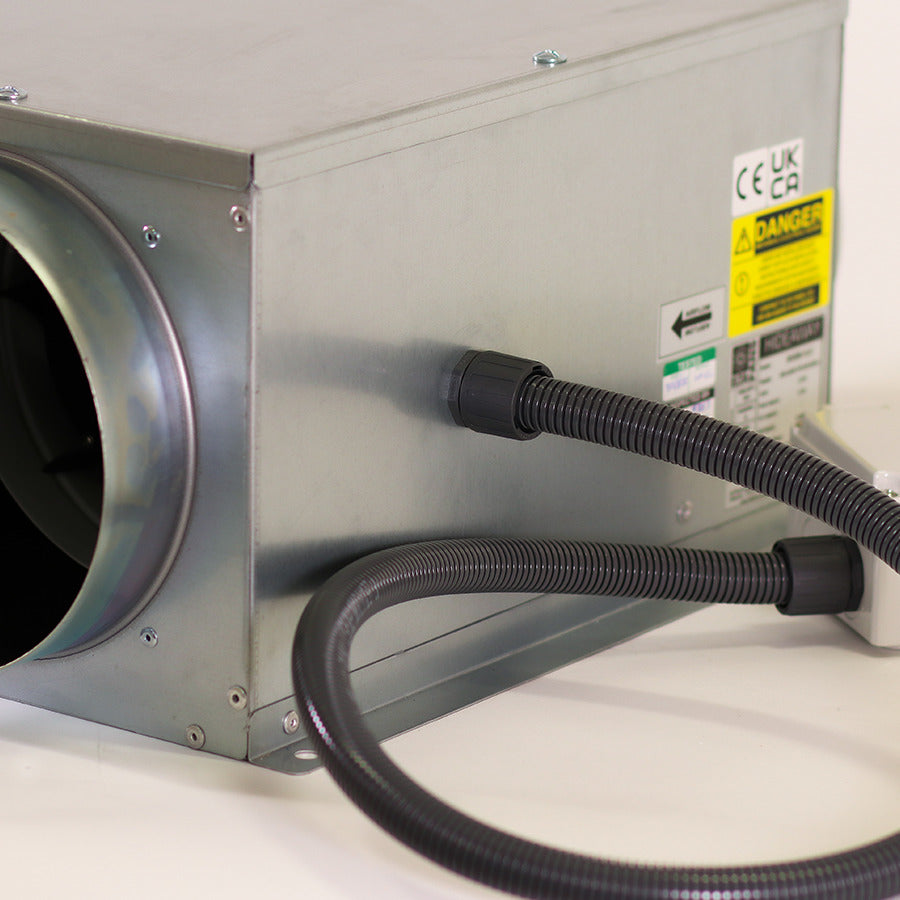

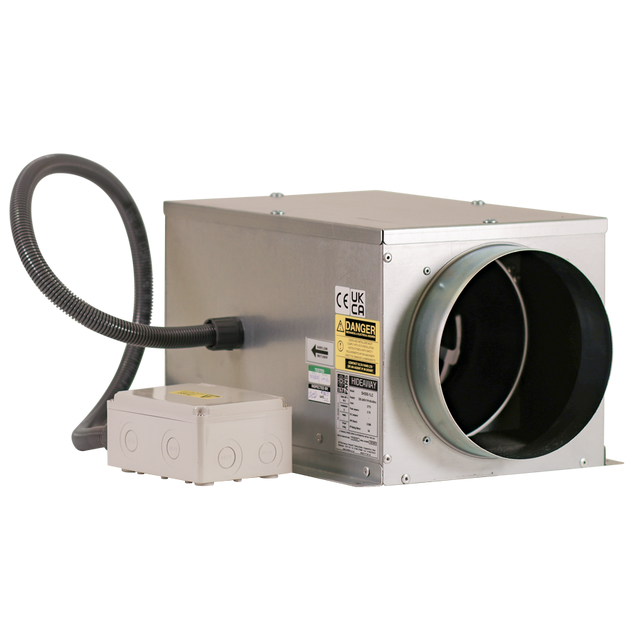

Hideaway SH Low Profile Box Fan

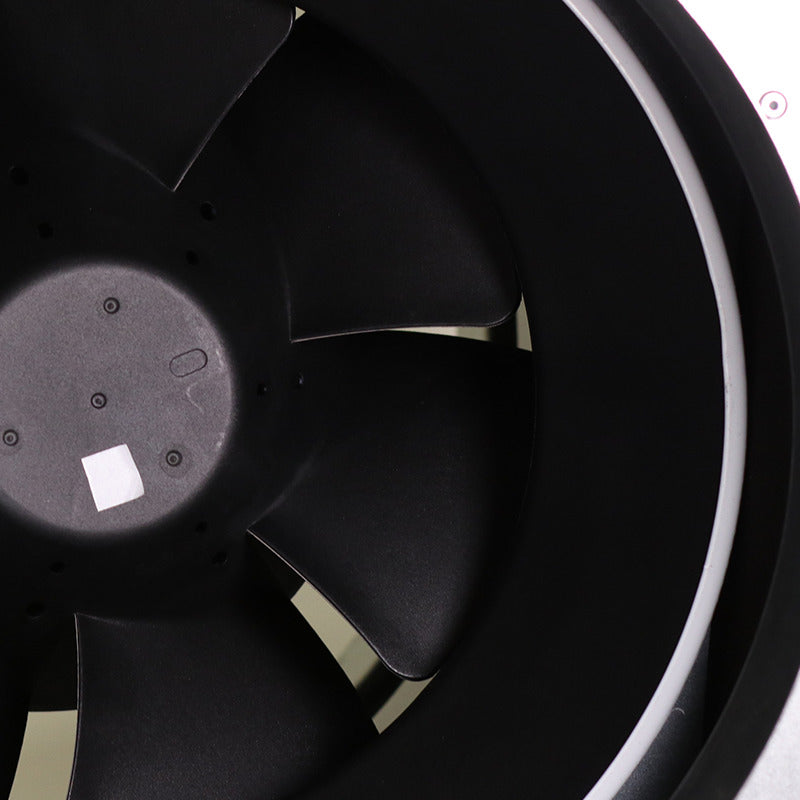

The Hideaway SH is a low profile EC box fan designed for ducted extract or supply applications where ceiling void depth is limited and noise control still matters. It combines a compact casing with an internally acoustically lined finish and an efficient mixed flow impeller design to deliver strong airflow with low specific fan power performance for building regulation focused specifications.
Key benefits
- Low profile design for tight spaces making it a practical choice for shallow ceiling voids and restricted service areas
- Acoustically lined casing with Class O fire resistant acoustic foam lining to help minimise breakout noise
- Integrated commissioning control for single speed selection and the ability to limit maximum speed when using an external potentiometer
- Precise EC controllability via potentiometer, 0 to 10VDC or PWM control for dependable speed setting
- Efficient performance designed to achieve low power consumption at higher performance with low SFP values for compliance led projects
- Service friendly build with a removable lid to support inspection, cleaning and ongoing maintenance
Typical applications
- Bathroom and kitchen extract in apartments
- Hotels
- Residential properties
- Libraries
- Offices
Specification highlights
| Standard sizes | Six sizes from 100mm to 315mm duct connections |
| Maximum airflow | Up to 0.832 m³/s depending on model and duty point |
| Maximum static pressure | Up to 451 Pa depending on model and duty point |
| Operating temperature | Suitable for ambient air conditions up to +60°C |
| Construction | 1.2mm galvanised mild steel casing with spigots for circular ducting |
| Motor and bearings | Brushless EC motor with sealed for life bearings, IPX4 motor |
Installation and commissioning notes
- Provide safe access for future maintenance and ensure the unit is adequately supported
- The fan can be mounted at any angle to suit the duct route and available space
- Speed can be set using the integrated commissioning control and can also be limited when using an external control source
- All electrical work should be completed by suitably qualified personnel in line with current requirements
Select the duct size that matches your system then confirm performance against your required airflow and pressure using the data sheet curves.
|
Product Data, Performance & Dimension Sheet |
|
 |
Installation, Maintenance & User Guide Follow the correct installation steps, wiring guidance, start up checks and maintenance routines for the Hideaway SH including commissioning control setup and safe servicing requirements. Click here to download the full installation, maintenance and user guide. Click here to download the full installation, maintenance and user guide. |
Looking to specify or purchase? Explore our full range of heat recovery ventilation units or contact Buy Ventilation for expert guidance on selecting the right system for your project.
